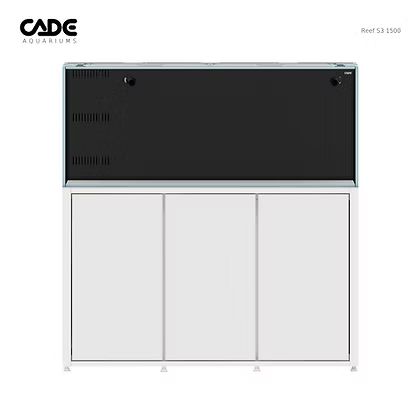

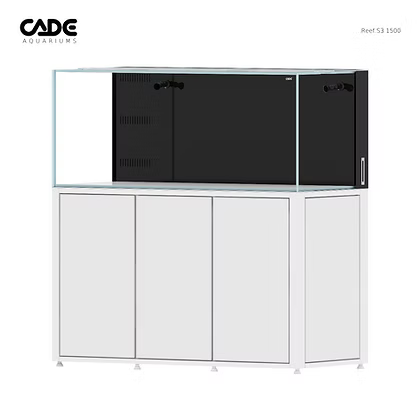

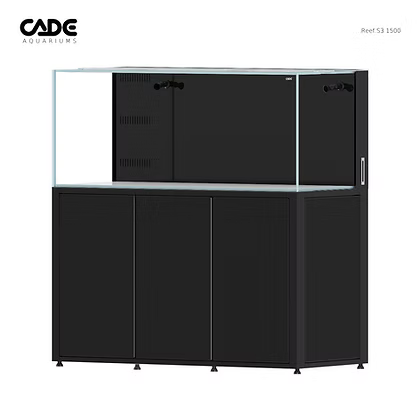

The CADE Reef S3 is our premium range of customisable, sump filtered saltwater Aquariums designed specifically for the advanced reef aquarist. The all-new Reef S3 aims to redefine Reef Aquaria combining advanced features, cutting edge functionality and premium construction materials to create a system that assembles with effortless simplicity.
The Reef S3 series has been expertly crafted to enable the Reef Aquarist to build a truly personalised Reef Aquarium system incorporating industry leading filtration design for unparalleled life support versatility. In its entirety the S3 range combines functional design and unique sophistication that both compliments contemporary home decor whilst fulfilling all of your Reef keeping requirements.
Key Feature:

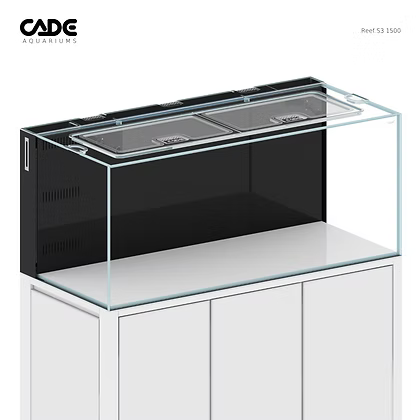

Tank
Tank dimensions: 1500x700x610mm
Internal dimensions (LxWxH): 1500x610x610mm
Total volume: 640L / 169gal
Display volume: 540L / 143gal
Glass type: Opti-Clear low Iron
Glass thickness: 15mm
Euro braced (10mm)

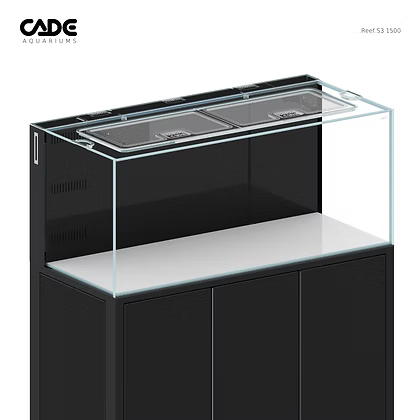

Polycarbonate Jump Guard: Tank, Weir & ATO
Light mount provision locations: Rear & Side Mount
Jet black rear glass panel (single sheet)
Concealed slimline Weir withthree inlet vents(surface, mid, low) for optimal intake flow and blockage redundancy
Gravity-fed 58.4L / 15.4gal ATO reservoir
Pre-installed tank plumbing out of the box

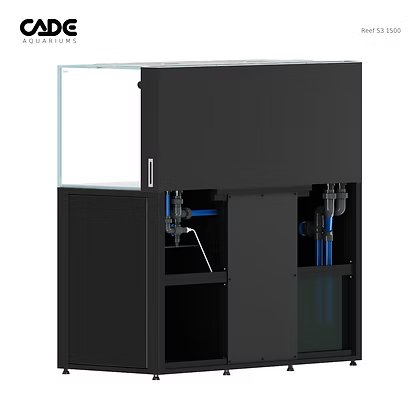

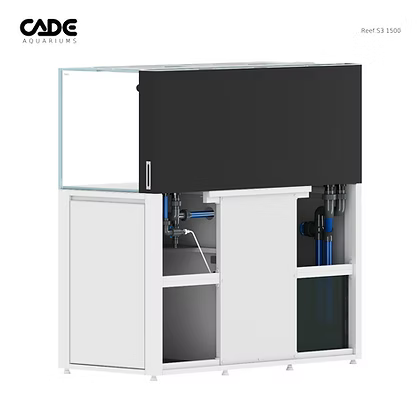

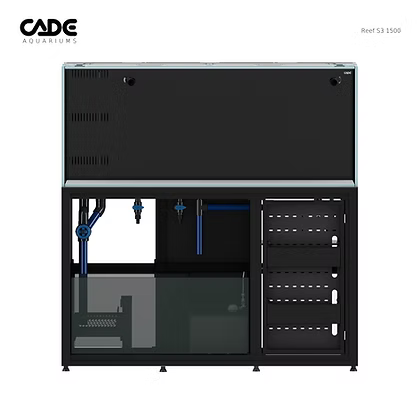

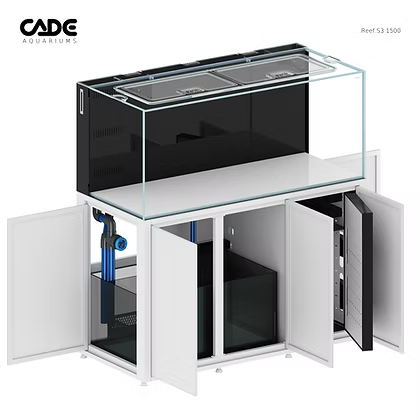

Cabinet
Dimensions: 1500×700×900mm
Aluminum frame and doors
100% waterproof and corrosion-proof
Cabinet pre-assembled with sump installed

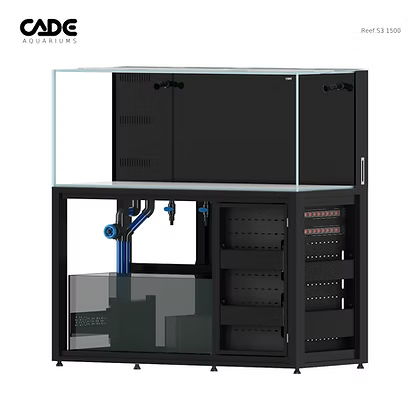

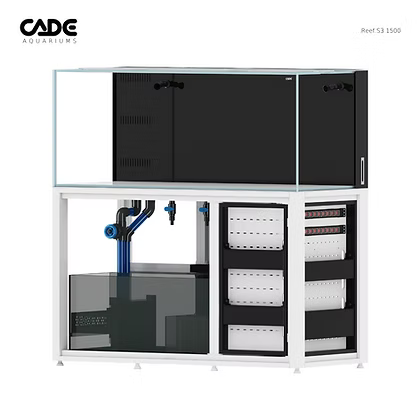

Device display panel (door) behind the cabinet's front door c/w integrated cable / power pack management boxes
Device display and power management behind Right-side door c/w power switches and cable / power pack management boxes
Dry space dimensions (LxWxH): 408x610x580mm
Power board c/w switches (16 sockets)
Left-side sump access for easy maintenance
Pre-installed foam tank mat
Adjustable levelling feet
Accessories shelf

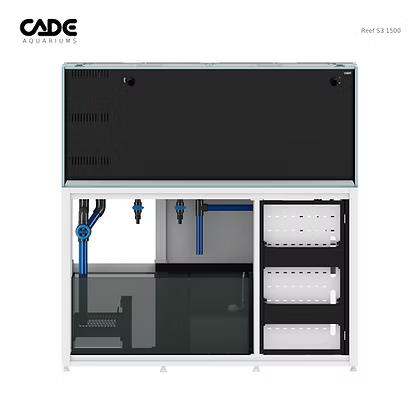

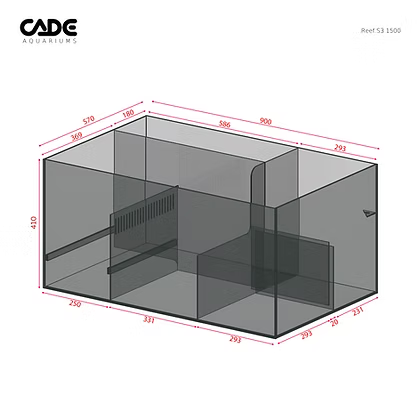

Sump & Filtration
Tinted glass sump
Roller mat ready (no filter socks)
Triton ready 'Triton Tray'. Can also be used as a Frag Rack
Protein skimmer / reactor chamber
Bio/chemical media chamber with removable media baskets
Return pump chamber with ATO float valve
Reactor/chiller feed outlets: x3

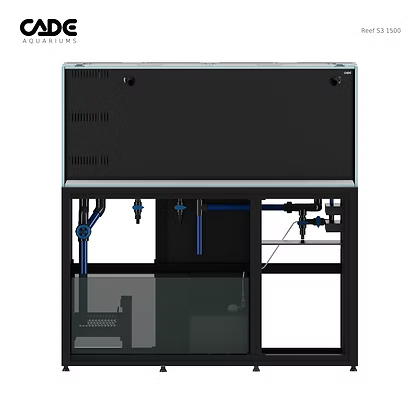

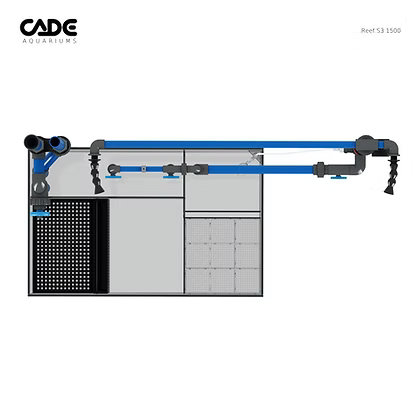

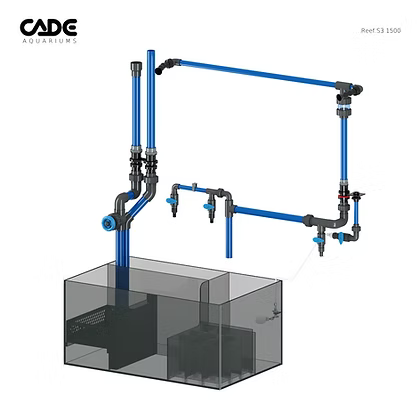

Plumbing

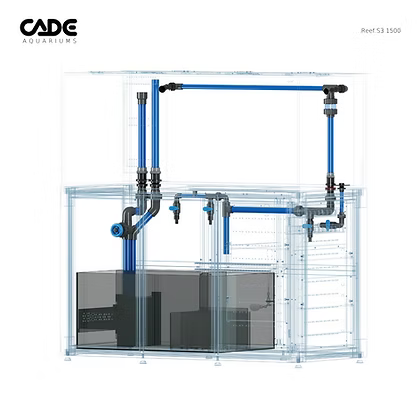

Newly designed prefabricated quick-fit plumbing system with all tank-side plumbing pre-installed
Simply screw fit the cabinet connections to the tank and connect the joiners to complete installation. The quickest Aquarium plumbing installation on the market
Full Flowcolour plumbing system including pipes, taps, and connections, finished in blue & grey
Dual down-flow pipes (main + emergency) with fine-tune gate valve
Concealed return plumbing with non-return valve and directional outlet nozzle in the tank
Tank outlets: x2
Silent Operation
Why Choose the CADE Reef S3? The S3 Series is 'Inspired by Aquarists and Crafted for Corals', combining advanced functionality with premium build quality to deliver a Reef system with unparalleled versatility and functionality.
The S3 Series sets a new standard in professional Reef Aquariums, featuring advanced device and cable management, a triple-intake weir, roller-mat ready sump, quick-fit plumbing, and a 100% waterproof all-aluminum cabinet for unmatched durability.
Warranty CADE products are covered by a 2 year limited warranty from the date of purchase covering manufacturers defects. Warranty does not cover damage caused by usage such as scratches and chips to glass consequent to normal wear and tear.
